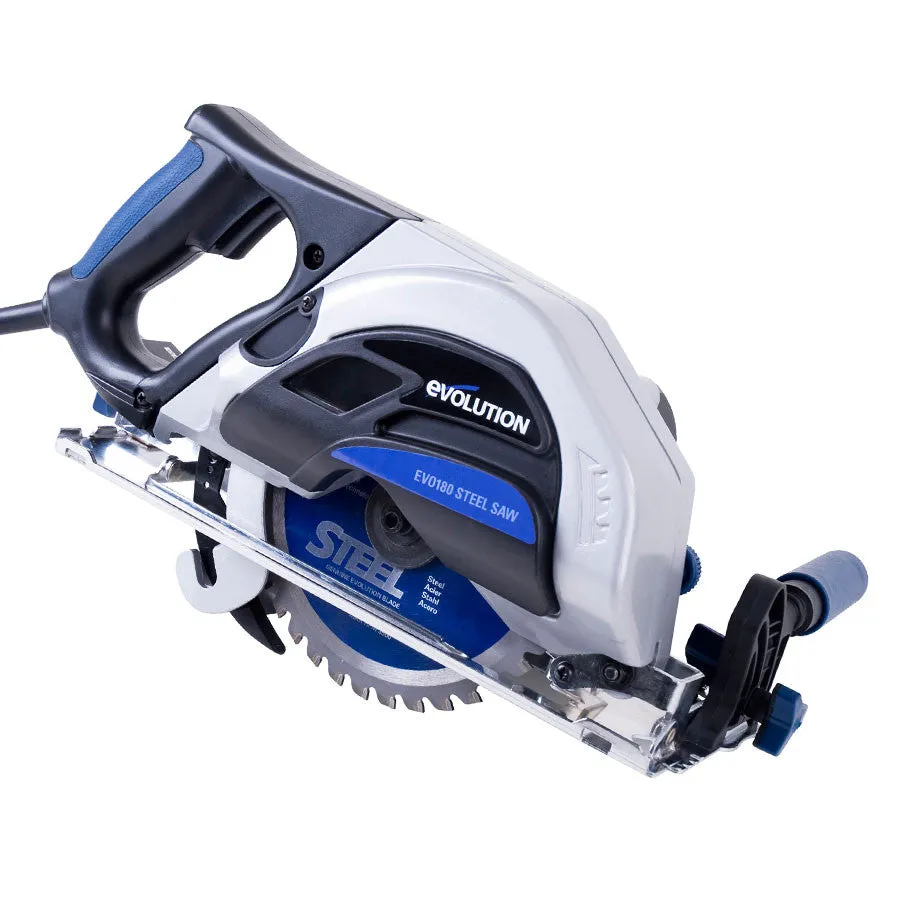

EVOSAW180HD - POWERFUL. RELIABLE. PORTABLE.
7-1/4” STEEL CUTTING CIRCULAR SAW & BLADE. Cuts Mild Steel Without Heat, Burrs or Coolant! The EVOSAW180HD is supplied with a 185mm (7-1/4”) Steel blade. It also comes with: carrying case, side handle, wrench, spare carbon brush set, fence guide, safety goggles, ear plugs, and manual.
- POWERFUL: Hi-torque 1100W motor with optimized gears & patented carbide-tipped blade, provides greatest blade-life value & smooth mild steel cuts.
- 3 YEAR WARRANTY: Best-in-class, reliable, no quibble warranty - so you can always get the job done.
- TRUE ACCURACY: Fence guide and clear visibility panel help ensure straight and accurate metal cutting.
- INDUSTRIAL QUALITY: Rated for heavy duty and industrial applications with chip collection capability. Also includes a safety switch with overload protection.
- VIRTUALLY NO SPARKS: Quicker, safer, more accurate & economical than an angle grinder! When cutting steel, the material has a workable finish; producing minimal heat, burrs, or sparks.
- VERSATILE METAL CUTTING: Easily adjustable depth of cut and 0-45° bevel tilt enhance the Evosaw180HD's cutting versatility.
- FULL BLADE RANGE: Cut Steel, Stainless Steel, Thin Steel and Aluminum with the optional blades available! The combination of an evolution saw and blade is the ultimate in cutting technology.
EVOSAW180HD - TECHNICAL SPECIFICATIONS
Motor: 1100W (120V ~ 60Hz)
Amps: 10
Horsepower: 1.5
RPM (No Load): 3900
Recommended Max. Duty Cycle: 30 minutes
Sound Pressure Level(Under Load): 98.5 dB(A)
Vibration Level (Under Load): 2.3 m/s²
Maximum Thickness of Cut: 5/16 inch
Maximum Cutting Depth At 90°: 2-1/4 inches
Maximum Cutting Depth At 45°: 1-3/8 inches
Tool Dimensions (H x W x L): 8-1/2 inches x 10 inches x 17-1/2 inches
Weight: 25 lbs
